Base class for all game screens and menus. More...

#include <Screen.h>

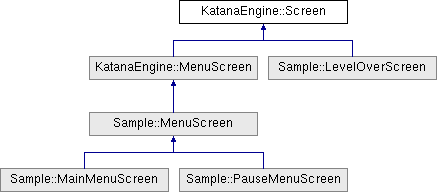

Inheritance diagram for KatanaEngine::Screen:

Public Member Functions
virtual void	LoadContent (ResourceManager *pResourceManager)
	Called when resources need to be loaded. More...

virtual void	UnloadContent ()
	Called when resources need to be unloaded. Override this method to unload any screen-specific resources.

virtual void	HandleInput (const InputState *pInput)
	Called when the game has determined that player input needs to be processed. More...

virtual void	Update (const GameTime *pGameTime)=0
	Called when the game has determined that screen logic needs to be processed. More...

virtual void	Draw (SpriteBatch *pSpriteBatch)=0
	Called when the game determines it is time to draw a frame. More...

virtual bool	IsExiting () const
	Determines if the screen is currently exiting. More...

float	GetAlpha () const
	Gets the overall screen transition alpha value (or opacity). This is handy for fading screens in and out. More...

virtual ScreenManager *	GetScreenManager ()
	Gets a pointer to the ScreenManager, for managing game screens. More...

virtual Game *	GetGame () const
	Gets a pointer to the Game. More...

virtual ParticleManager *	GetParticleManager () const
	Gets a pointer to the ParticleManager, for creating and managing particles. More...

virtual void	SetScreenManager (ScreenManager *pScreenManager)
	Gets a pointer to the ScreenManager, for managing game screens. More...

virtual void	Show ()
	Tells the screen to transition in.

virtual void	Exit ()
	Tells the screen to transition out. When the screen has completed its transition, UnloadContent() will be called, and the ScreenManager will remove it. More...

virtual void	SetExitCallback (OnExit callback)
	Sets the callback function for when the Exit() is called. More...

virtual void	SetRemoveCallback (OnRemove callback)
	Sets the callback function for when the screen is about to be removed by the screen manager. More...

virtual double	GetTransitionOutTime () const
	Get the time in seconds that the screen will transition out. More...

Protected Types
enum	ScreenTransition { ScreenTransition::NONE, ScreenTransition::IN, ScreenTransition::OUT }
	Defines the state of the transition between screens. More...

Protected Member Functions
virtual void	SetPassthroughFlags (const bool draw=false, const bool update=false, const bool handleInput=false)
	Sets the flags that determine if the underlaying screen should handle input, update, and/or render. More...

virtual void	SetTransitionInTime (double seconds)
	Set the time in seconds that the screen should transition in. More...

virtual void	SetTransitionOutTime (double seconds)
	Set the time in seconds that the screen should transition out. More...

virtual double	GetTransitionInTime () const
	Get the time in seconds that the screen will transition in. More...

virtual ScreenTransition	GetTransition () const
	Get the current transition state of the screen. More...

virtual float	GetTransitionValue () const
	Get the interpolated value (between zero and one) of the screen transition. More...

virtual bool	NeedsToBeRemoved () const
	Determines if the screen has completely faded out and needs to be removed by the ScreenManager. More...

virtual void	UseRenderTarget ()
	Forces all screen rendering to a render target.

virtual RenderTarget *	GetRenderTarget () const
	Get screen's render target. More...

virtual Color	GetRenderTargetColor () const
	Get the color that will be used to tint the render target. More...

Friends
class	ScreenManager

Detailed Description

Base class for all game screens and menus.

Member Enumeration Documentation

◆ ScreenTransition

enum KatanaEngine::Screen::ScreenTransition

strongprotected

Defines the state of the transition between screens.

Enumerator
NONE	The screen is not transitioning.
IN	The screen is transitioning in.
OUT	The screen is transitioning out.

Member Function Documentation

◆ Draw()

virtual void KatanaEngine::Screen::Draw ( SpriteBatch * pSpriteBatch )

pure virtual

Called when the game determines it is time to draw a frame.

Parameters

pSpriteBatch The game's sprite batch, used for rendering.

Implemented in KatanaEngine::MenuScreen.

◆ Exit()

void Screen::Exit ( )

virtual

Tells the screen to transition out. When the screen has completed its transition, UnloadContent() will be called, and the ScreenManager will remove it.

Remarks: SetExitCallback() and SetRemoveCallback() can be used to trigger events involving the exiting process.

◆ GetAlpha()

float KatanaEngine::Screen::GetAlpha ( ) const

inline

Gets the overall screen transition alpha value (or opacity). This is handy for fading screens in and out.

Returns: Returns the alpha value.

Remarks: This function is an alias for the protected GetTransitionValue().

See also: GetTransitionValue()

◆ GetGame()

Game * Screen::GetGame ( ) const

virtual

Gets a pointer to the Game.

Returns: A pointer to the game instance.

◆ GetParticleManager()

ParticleManager * Screen::GetParticleManager ( ) const

virtual

Gets a pointer to the ParticleManager, for creating and managing particles.

Returns: A pointer to the game's ParticleManager instance.

◆ GetRenderTarget()

virtual RenderTarget* KatanaEngine::Screen::GetRenderTarget ( ) const

inlineprotectedvirtual

Get screen's render target.

Returns: Returns a pointer to the render target, or nullptr if the screen doesn't use one.

◆ GetRenderTargetColor()

virtual Color KatanaEngine::Screen::GetRenderTargetColor ( ) const

inlineprotectedvirtual

Get the color that will be used to tint the render target.

Returns: Returns the render target draw tint.

◆ GetScreenManager()

virtual ScreenManager* KatanaEngine::Screen::GetScreenManager ( )

inlinevirtual

Gets a pointer to the ScreenManager, for managing game screens.

Returns: A pointer to the game's ScreenManager instance.

◆ GetTransition()

virtual ScreenTransition KatanaEngine::Screen::GetTransition ( ) const

inlineprotectedvirtual

Get the current transition state of the screen.

Returns: Returns the current transition.

◆ GetTransitionInTime()

virtual double KatanaEngine::Screen::GetTransitionInTime ( ) const

inlineprotectedvirtual

Get the time in seconds that the screen will transition in.

Returns: Returns the transition time in seconds.

◆ GetTransitionOutTime()

virtual double KatanaEngine::Screen::GetTransitionOutTime ( ) const

inlinevirtual

Get the time in seconds that the screen will transition out.

Returns: Returns the transition time in seconds.

◆ GetTransitionValue()

virtual float KatanaEngine::Screen::GetTransitionValue ( ) const

inlineprotectedvirtual

Get the interpolated value (between zero and one) of the screen transition.

Returns: Returns a value that represents the percentage of the transition. Zero means the screen is entirely transitioned of, and one means it's entirely on.

◆ HandleInput()

virtual void KatanaEngine::Screen::HandleInput ( const InputState * pInput )

inlinevirtual

Called when the game has determined that player input needs to be processed.

Parameters

pInput The current state of all player input devices.

Reimplemented in KatanaEngine::MenuScreen.

◆ IsExiting()

virtual bool KatanaEngine::Screen::IsExiting ( ) const

inlinevirtual

Determines if the screen is currently exiting.

Returns: Returns true if the screen is exiting, false otherwise.

◆ LoadContent()

virtual void KatanaEngine::Screen::LoadContent ( ResourceManager * pResourceManager )

inlinevirtual

Called when resources need to be loaded.

Parameters

pResourceManager The game's resource manager, used for loading and managing game resources.

◆ NeedsToBeRemoved()

virtual bool KatanaEngine::Screen::NeedsToBeRemoved ( ) const

inlineprotectedvirtual

Determines if the screen has completely faded out and needs to be removed by the ScreenManager.

Returns: Returns true if the screen needs to be removed, false otherwise.

◆ SetExitCallback()

virtual void KatanaEngine::Screen::SetExitCallback ( OnExit callback )

inlinevirtual

Sets the callback function for when the Exit() is called.

Parameters

callback The callback function.

◆ SetPassthroughFlags()

void Screen::SetPassthroughFlags	(	const bool	draw = `false`,
		const bool	update = `false`,
		const bool	handleInput = `false`
	)

protectedvirtual

Sets the flags that determine if the underlaying screen should handle input, update, and/or render.

Parameters

draw	Set this flag to true if the underlaying screen should render.
update	Set this flag to true if the underlaying screen should update.
handleInput	Set this flag to true if the underlaying screen should handle user input.

◆ SetRemoveCallback()

virtual void KatanaEngine::Screen::SetRemoveCallback ( OnRemove callback )

inlinevirtual

Sets the callback function for when the screen is about to be removed by the screen manager.

Parameters

callback The callback function.

◆ SetScreenManager()

void Screen::SetScreenManager ( ScreenManager * pScreenManager )

virtual

Gets a pointer to the ScreenManager, for managing game screens.

Returns: A pointer to the game's ScreenManager instance.

◆ SetTransitionInTime()

virtual void KatanaEngine::Screen::SetTransitionInTime ( double seconds )

inlineprotectedvirtual

Set the time in seconds that the screen should transition in.

Parameters

seconds The transition time.

◆ SetTransitionOutTime()

virtual void KatanaEngine::Screen::SetTransitionOutTime ( double seconds )

inlineprotectedvirtual

Set the time in seconds that the screen should transition out.

Parameters

seconds The transition time.

◆ Update()

virtual void KatanaEngine::Screen::Update ( const GameTime * pGameTime )

pure virtual

Called when the game has determined that screen logic needs to be processed.

Parameters

pGameTime Timing values including time since last update.

Implemented in KatanaEngine::MenuScreen.

The documentation for this class was generated from the following files:

KatanaEngine/Screen.h
KatanaEngine/Screen.cpp
